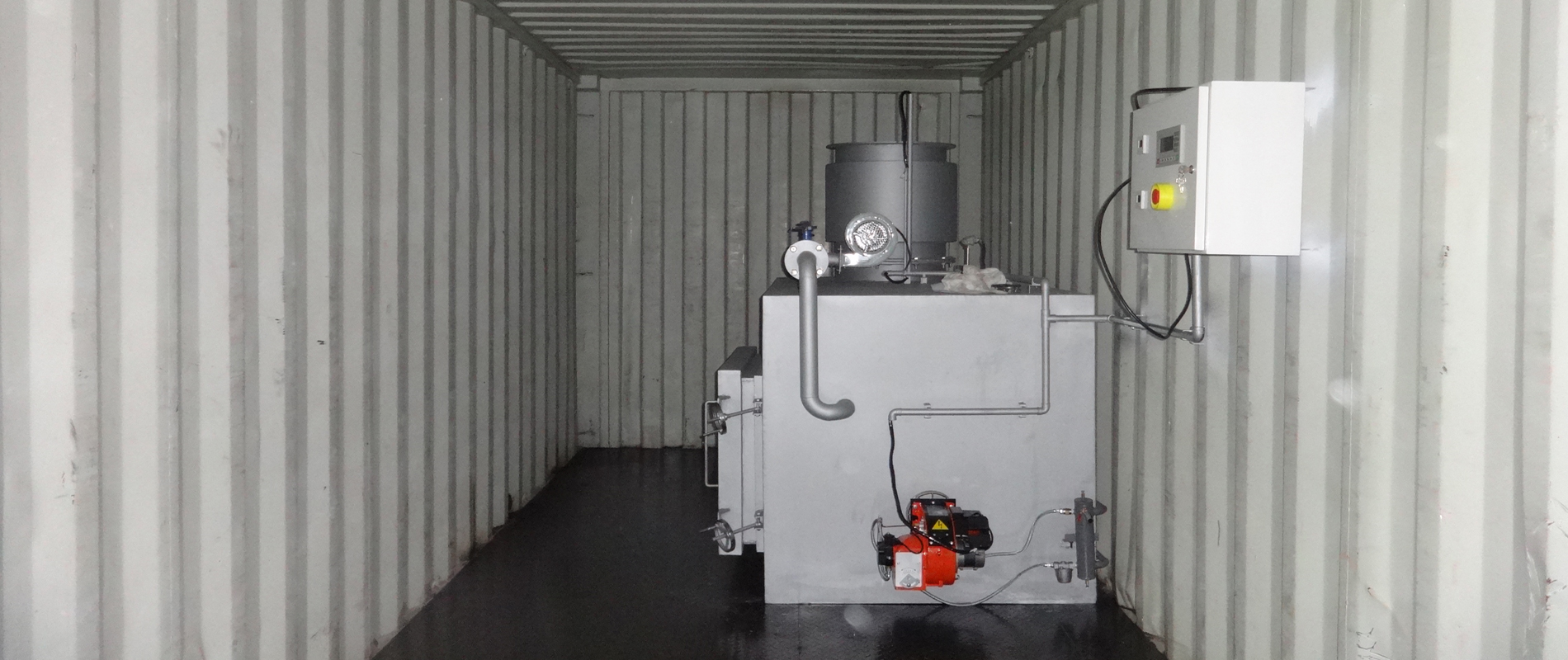

Mobile medi- cal waste in- cinerator Mobil tıbbi atık yakma fırınıMobile medical waste incinerator Capacity: 20 – 30 KG/HPrimary chamber temperature 900 – 1100 C Secondary chamber temperature above 900 CFlue gas treatment based on multi pollutants control ap- proach to remove hazardous content of the combustion gassesFuel: DieselTurkish made (China made is not accepted) Supplier should provide no cost consultation on demand for at least 6 months after provision Price includes transportation.Incinerator, waste generated 1 ton, , moisture content 10% Mobil tıbbi atık yakma fırınıKapasite: 20 – 30 KG / HBirinci oda sıcaklığı 900 – 1100 Cİkinci oda sıcaklığı 900 C’nin üzerindeYanma gazlarının tehlikeli içeriğini gidermek için çoklu kirletici kontrol yaklaşımına dayalı baca gazı arıtma sis- temiYakıt: DizelTürk malı (Çin malı kabul edilmez) Tedarikçi, tedarikten sonra en az 6 ay boyunca talep üzerine danışma için herhangi bir ücret talep etmemeliTaşıma ücreti dahildir
Smart Ash Incinerators 1. Size requirement for the incinerators is that the unit works with a 55 gallon open ended steel drum. 2. The unit should operate wit. no fuel and use only 120V or 220V electricity for the blowers. 3. The unit should be capable of burning oil contaminated wastes and medical wastes with a moisture content of 0-15%J 4. Each unit should come witH two steel drums, so that a spare drum is available. Spare Parts Option If there are any vendor suggested spare parts , that list and price should be included as an option in the offer. Waste electrical or electronic appliances or assemblies, including printed circuit boards, containing toxic material and/or heavy metal and/or emitting low radiation. Used battery cells: Dry battery, UPS battery or other types, unsorted waste batteries/ battery cells, containing materials that are hazardouy. Used lead-acid batteries: Waste lead-acid batteries, rained/un-drained, and whole or crushed. Hazardous medical waste: Clinical and related waste, arising from medical, nursing or similar practices and waste generated in clinics during the investigation or treatment of patients (bio hazard). Expired drugs, solid: Waste pharmaceuticals, drugs and medicines, including sensitive medicines. Expired drugs Iiquid: Waste liquid pharmaceuticals, different type liquid chemicals for treatment, medical grease, and paraffin based xpired medicines. Expired and/or contaminated fod: Spoiled fresh food or unusable MRE’s (Meal Ready for Eat – dry food) Onsite Training and Assem Option for Industrial Incinerators I. The bidders should includ 1a price in their offer for training in a central location ( Goma or Bukavu) approximately 15 staff in the operation and maintenance of the equipment.
Incinerator Technical Specifications Parameter Description Property CHIMNEY – Standard top type – Self supporting PERFORMANCE Temperature Not less than 11000C Capacity (kg/hr.) 10 Waste type paper, clothing, packaging, rags, pallets, polythene and others Air pollution Standard The Environment Conservation Rules, 1997 DIMENSIONS Height(mm) 2256 Length (mm) 725 Width (mm) 725 Door opening 490×390 mm Chamber volume(m3) 0.5 Stack diameter(mm) 200 Grate/Hearth area(m2) 0.4 MATERIALS Casing 3.0mm & 4.5mm mild steel Loading Door High grade cast iron Grate/Hearth support Heavy mild steel plate lined with cast able refractory and insulation Ashing door High grade cast iron Insulation wall High temperature insulation bricks Refractory High alumina monolithic Air supply Natural Firing system Free burning or diesel/Oil/NG for non-combustible product Painting Casting Hammerite deep green Roof Hammerite silver grey Stack-mild Steel Hammerite silver grey […]
The incinerator should be a modern waste disposal unit, designed to burn medical waste in a clean and environmentally efficient manner. It should employ a temperature based logic control system to provide optimum control of the operating conditions and incorporate a high capacity thermal oxidizing secondary chamber. It should be designed to retain the exhaust gases, for at least 2 seconds to ensure the units effective destruction of the combustion products. Waste type Healthcare waste Waste density 125 to 350kg/M³ Waste calorific value 4000KCAl/Kg Moisture content 10-25% Estimated ash residue 5-10% Nominal capacity 50Kg/hour batch load Secondary chamber 2 seconds @ 850° c Primary combustion The primary combustion chamber is the main structure f the incinerator, fabricated from mild steel plate and stiffened with rolled steel sections. it is carried from the floor level on a substantial steel support frame. Internally the shell is lined with calcium silicate insulation and a hot face combination of super duty brick work or strength cast able. The primary combustion chamber must ensure minimum exit temperature is not less than 850°c One manual load incinerator comprising : Manual loading door Horizontal solid hearth, refractory lined primary combustion chamber. Approximate dimensions 800mm diameter x 2100mm long Full sized bulk load /ash removal door 1 off diesel –fired igniter burner –temperature controlled 1 off combustion air supply fan and distribution system ,automatic control High capacity secondary chamber with residence time not less than 2 seconds @>850°c 1 off diesel fired afterburner –temperature controlled Control panel –automatic operation Temperature indication primary and secondary chambers Refractory lined flanged chimney to a height of 10M above ground level NOTE: The secondary combustion chamber must ensure that the gas temperature as measured against the inside wall in the secondary chamber & not in the flame zone, is not less than 1100°c. Throughput 5okg /hour at a nominal caloric value of 4000kcal/kg and an average bulk density of 120kg/M³ for health care waste Ash
SECONDARY CHAMBER TECHNICAL SPECIFICATIONS FOR CIPDR INCINERATOR OF 75 KGS/HR CAPACITY A. INCINERATOR 1. Brand Type & Model: “ALFA-THERM” Oil Fired Incinerator Model BMWC-100 or approved equivalent. 2. Burning Capacity: 75 kgs/hr or more 3. Auxiliary Fuel: Diesel OR Industrial Diesel Oil 4. Type of Burner Operation: Mono-block fully automatic burners 5. Temperature: Primary Chamber 800 + 500C & Secondary Chamber 1050 + 500C B. PRIMARY CHAMBER 1. Type: Static Solid Hearth 2. Material of Construction: Mild Steel 6mm 3. Refractory thickness: 115mm thick 4. Material: Refractory bricks 5. Temperature resistance: 14000C 6. Insulation thickness: 115mm thick 7. Material: Insulation bricks 8. Waste Charging: Manual 9. Ash Removal: Manual 1. Type: Static Solid Hearth 2. Material of Construction: Mild Steel 6mm 3. Refractory thickness: 115mm thick 4. Material: Refractory bricks 5. Temperature resistance: 14000C 6. Insulation thickness: 115mm 7. Material: Insulation bricks D. EDUCTOR FAN 1. Type: High Pressure Centrifugal type 2. MOC: Mild Steel E. COMBUSTION FAN 1. Type: Centrifugal 2. Modulation: Manual damper control 3. MOC: Mild Steel 4. Drive: Direct drive F. CYCLONE SEPARATOR – AIR POLLUTION CONTROL DEVICE 1. MOC: Mild Steel 2. Internal lining: Refractory lined 3. Collection Port: Provided at the bottom G. CONTROL PANEL 1. MOC: CRCA Sheet 2. Type of temperature controller: Digital 3. Finish & Painting type: Powder coated 4. Audio-visual alarm system: Provided H. BURNERS 1. No. of burners: 2 Nos. (1Nos in primary Chamber and 1No. in Secondary Chamber) 2. Type: Mono-block fully automatic 3. Fuel: Diesel 4. Make: “Alfa-Therm” I. FUEL OIL STORAGE TANK 1. MOC & Capacity: Mild Steel, suitable capacity 2. Other Standard Accessories: Diesel Oil level indicator, piping with valves & N. R. Valve 3. Visual checking of Fuel: Provided
